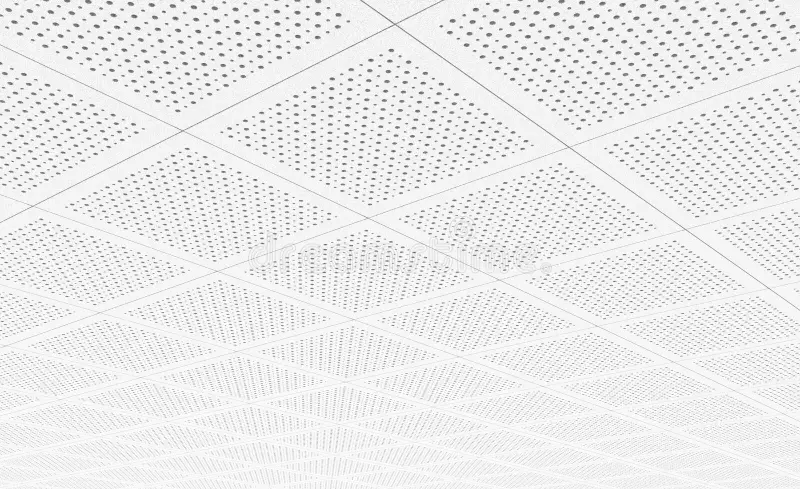

Perforated aluminium ceiling tiles

Description

당사는 오랜 연구  끝에 실리콘과 탄소는 상호 결합 경화에 성공하여 탄소 실리콘 코팅발열망을 탄생시켰습니다. 실리콘은 다른 탄성체 소재 와도 비교할 수 없는 안정된 화학구조를 가지고 있으며, 부식성이 없고 산화되지 않는 화합물로서 내열, 내한, 전기절연, 화학적 안정성, 내마모성, 광 택성, 무 독성, 풍부한 탄성 등 여러 가지 특성을 갖추고 있습니다.

Deckon Premium aluminium Lay-in ceiling systems feature visible T24 grid integration, creating a clean, structured, and contemporary ceiling appearance with modular panels placed into the system.Designed for high-performance applications, they offer easy installation, demountable access, and design flexibility, with optional perforation and acoustic fleece backing to enhance acoustic performance.

Technical Info::

  • Product : aluminium
    Sizes : 600x600mm
    Thickness : 0.40mm+paint (finish thickness 0.50mm)
    Surface : electrostatic powder coated
    Perforation : 2.5mm hole diameter with 100mm bordure
    Suspension sys : hot dip galvanised steel, black
    Edge detail : 20-30mm up-turns, as specified
    Fire Resistance : class A as steel
    Color : RAL 9003, standard white

Product Specifications:

  • Lay-in system, also called as “semi-concealed” is formed by allowing ceiling tiles lean on
    T24 as tees are visible but there is a shadow effect. All tiles are demountable manually
    without any special tool so that the system enables fast and easy access to the ceiling void.

Perforations:

  • Hole Diameter: 2.5 mm
    Axis (Center to Center): 5.5m
    Perforation: Regular
